1. Multiple Drainage Applications
Single wall corrugated pipe is ideal for drainage projects where flexibility, light weight and low cost are important.

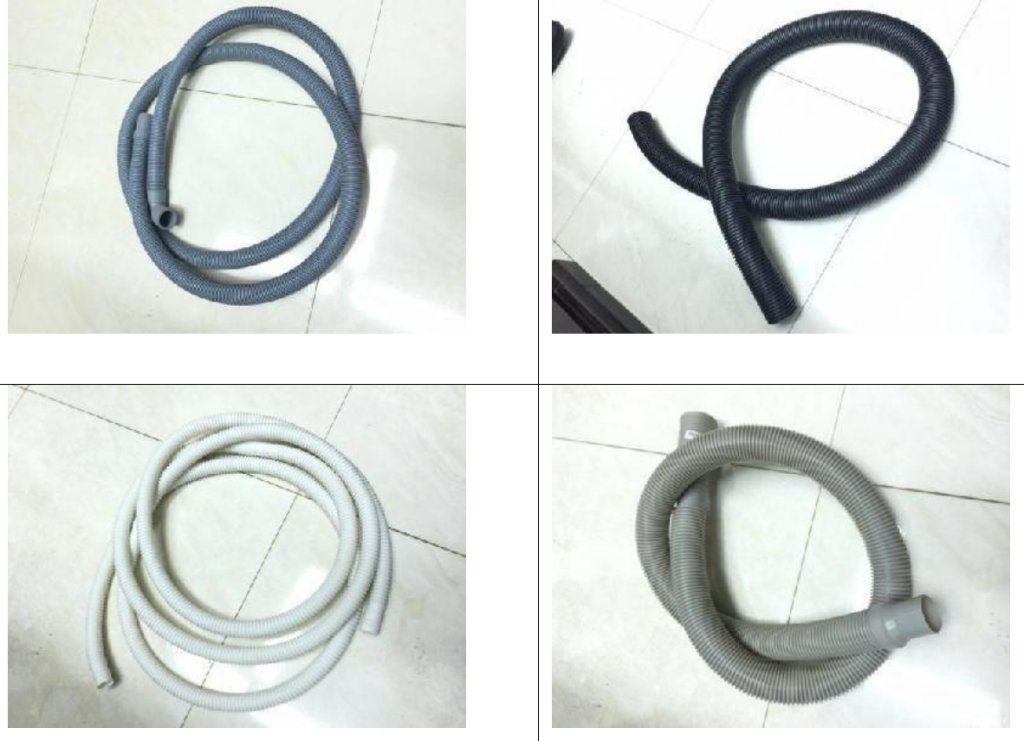

Single wall corrugated pipe has kept farms, golf courses, parks and playing fields dry for decades by channeling away excess underground moisture. It is also used for highway edge drains, culverts and other construction applications where economy and durability are important.
PE Pipes, PVC Pipes

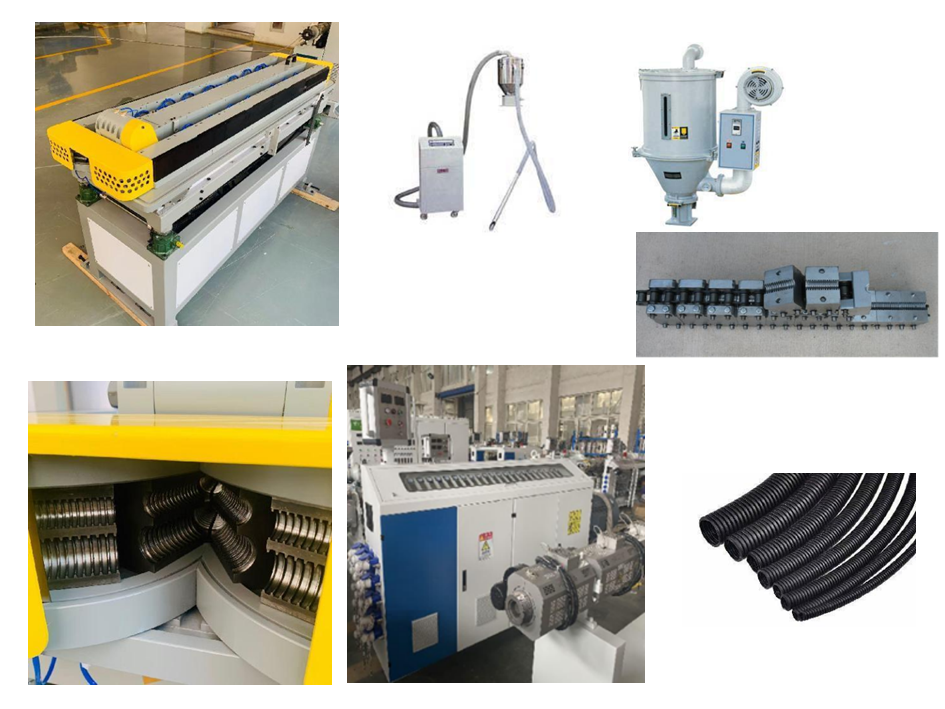

PE Pipe Extruder
- ZKJ-200 vacuum feeder 1set 4000RMB
- STKG-160 hopper dryer 1set 5000RMB
- SKJ65/33 single screw extruder 1set 70000RMB
- Mould 1 spec 22000RMB /one spec;
- Forming machine(high speed) 1 set
- SKPS-50 winder 24000RMB
Applications: for making PE single wall corrugated pipes
2.1 Basic Infrastructure (Provided by customer)
a. Space for HDPE corrugated pipe production line
b. Electricity network: 380V/50Hz (Adjustable according to your local voltage standard)
c. Wire/cables: wires/cables from customer’s general control cabinet to the main control cabinet for HDPE corrugated pipe production line; all electrical cable from the main control cabinet to each machine.
d. Water supply: main water pipeline supply and water pipes to machines
e. Compressed air supply: necessary compressed air for mould, forming machine, winder
f: lubrication oil: for reducer gearbox
f. Means for lifting the machines and pipe when unloading and positioning
g. Everything else not clearly mentioned above
2.2 Energy consumption:
a. Electricity requirement
Total power installed: 66kw
b. Water requirement
water can be recycle
c. Labor requirement
Max. Qty. of labors: 1 person
d: compressed air requirement: 0.4Mpa-0.8Mpa
Equipment component and quotation
| No. | Name | Qty. | Price（RMB） |
| 1 | ZKJ-200 vacuum feeder | 1set | 4000 |
| 2 | STKG-160 hopper dryer | 1set | 5000 |
| 3 | SKJ65/33 single screw extruder | 1set | 70000 |
| 4 | Mould | 1 spec | 22000/one spec |
| 5 | Forming machine(high speed) | 1set | 85000 |
| 6 | SKPS-50 winder | 1set | 24000 |
3.1 Technical specification
Material: PE pellets
Pipe diameter: ￠16~50mm
| No. | Name | Photo of machine and Technical specifications | |
| 1 | ZKJ-200 vacuum feeder | Maximum static pressure:9800PaMaximum air volume: 2 M3/minMotor power: 1.1KWMotor speed : 2800r/min Transmission capacity:200KG/HInspiratory volume: 10LConveyor tube diameter:40mmSuction hose diameter:50mm Dimension: 500X400X800mmWeight : 75KG |  |

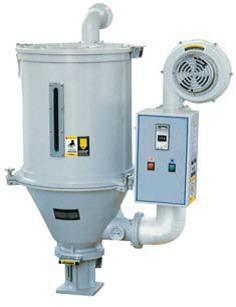

| 2 | STKG-160 hopper dryer | Hopper volume : 160LMaterial capacity: 100KG Heating power: 5.5 KW Fan power: 0.25KW Dimension: 1650x650x1650mmWeight: 90KG |  |
| 3 | SKJ-65/33single screw extruder | Machinery part: Screw diameter: 65mm L:D 33:1Motor power: 37kwHeating: 4 zones, 16KW Cooling: 4 zones, 0.5KWCapacity:100kg/h, Hard surface gear-box from changzhou Material of screw& Barre:38CrMoAlA With Nittriding Treatment.Heater : cast Aluminum heaterCooling system : 1/2HPfan cooling 180WElectrical cabinet:Frequency converter: ABB Temperature controller: OmronLow voltage apparatus: Siemens |  |

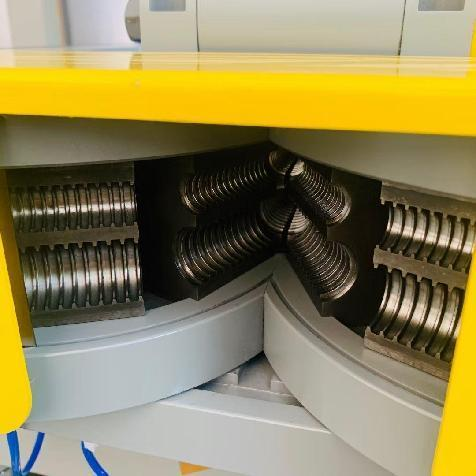

| 4 | Die-head with forming mould | Sizes: OD Below Ø50mmMaterial: 40Cr quenching NitridingHead heating: stainless steel heating ringQuantity of block: 74pairs.Applicable pipe diameter range: 16mm-50mm Circumference: 3m Cooling type: Air cooling and water coolingDimension:56*36*75 |  |

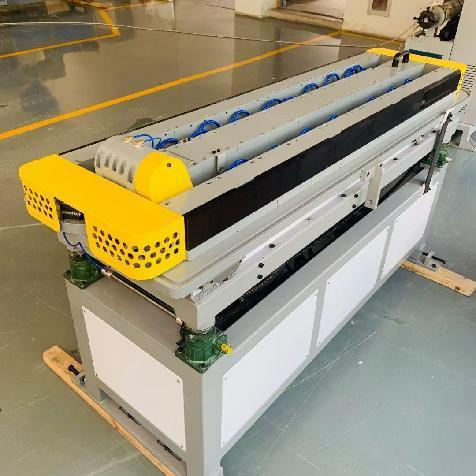

| 5 | Forming machine(high speed) | power: 4KWInverter power: 4KWContactor: 2 setsHauling speed: 0-25m/minFrequency governor: ABB converter (Germany)Frequency governor power:2.2kwContactor: SchneiderWater coolingWeight:2000kgDimension:2200*700*1200Control system:PLC |  |

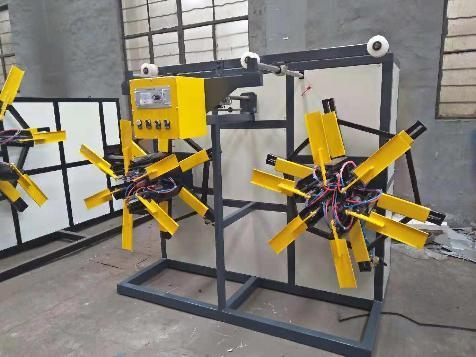

| 6 | SKPS-50 Winder | Coiling speed:0-15m/minSuitable pipe size:12-50mmWinding form: double take-up |  |
4.1 Term of payment
50% as advance payment by T/T after signing contract;
50% at advice goods ready by T/T before delivery
4.2 Delivery
55 working days since receiving advance payment.
More information:
PE pipe material recycles, grinding machine, plastic shredder, packing machine for PE pipe materials, pack with shrink film, or printed films, PE pipe production tools. Chargers for production line.
